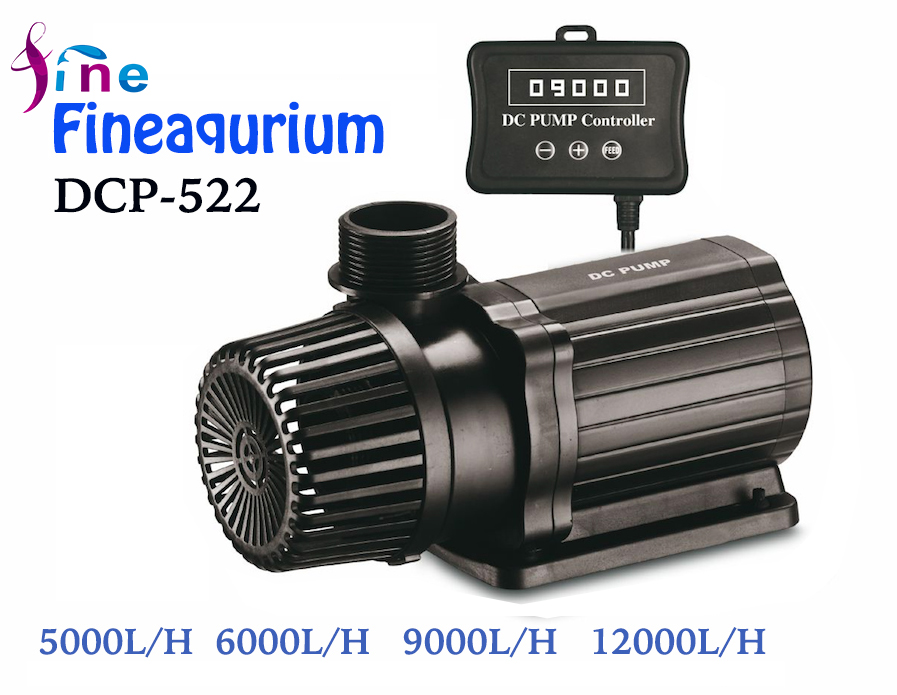

DCP-522 DC24V Flow Displaying on External Controller Water Pumps 5000LPH to 12000LPH

Series Water Pump
Material ABS housing
Model DCP-522-24V
Parameters
Series
Water Pump
Material
ABS housing
Model
DCP-522-24V
I know
Detail

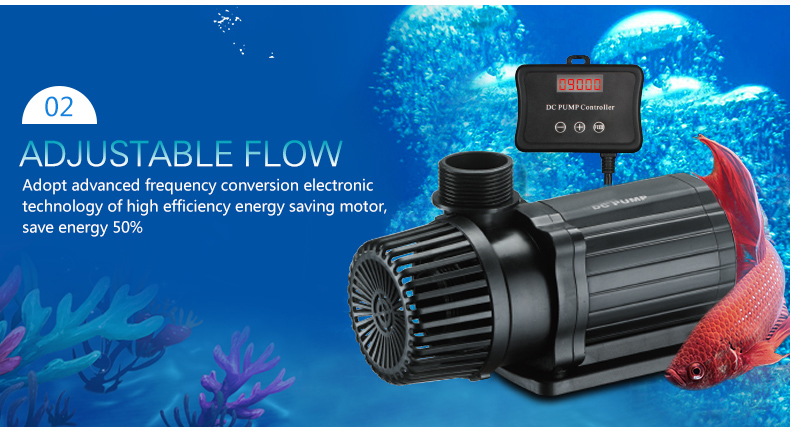

DC24V Variable Frequency Conversion Aquarium Water Pump with flow adjustable and display on external controller box

DC Amphibous water pumps for ponds, pools and large aquarium tanks with waterproof controller box and 6m/10m rubber wire for garden or irrigation.


Brushless Frequency Conversion Aquarium Water Pump

Model No.: DCP-522 with sine-wave controller
--- with flow adjustable;
--- with flow displaying;
--- used both into the water and external of water;
--- variable frequency water pumps;

--- used both for fresh water and marine water.

SPECIFICATIONS


Item #

Voltage

Power(W)

Flow

Height max

Pump Size

Qty/ctn

DCP-522-5000L

DC 24V

43W

5000L/H

3.2M

195*89*119mm

6pcs

DCP-522-6000L

DC 24V

55W

6000L/H

3.6M

195*89*119mm

6pcs

DCP-522-9000L

DC 24V

80W

9000L/H

4.3M

210*89*119mm

6pcs

DCP-522-12000L

DC 24V

85W

12000L/H

4.8M

210*89*119mm

6pcs





MAIN FEATURES

1. Separate motor and driver;
2. Adjustable flow controller, energy saving;
3. IC chip controlling, lack of water, stuck protection
4. Suitable for freshwater and marine water;
5. 5 minutes stopped for feeding
